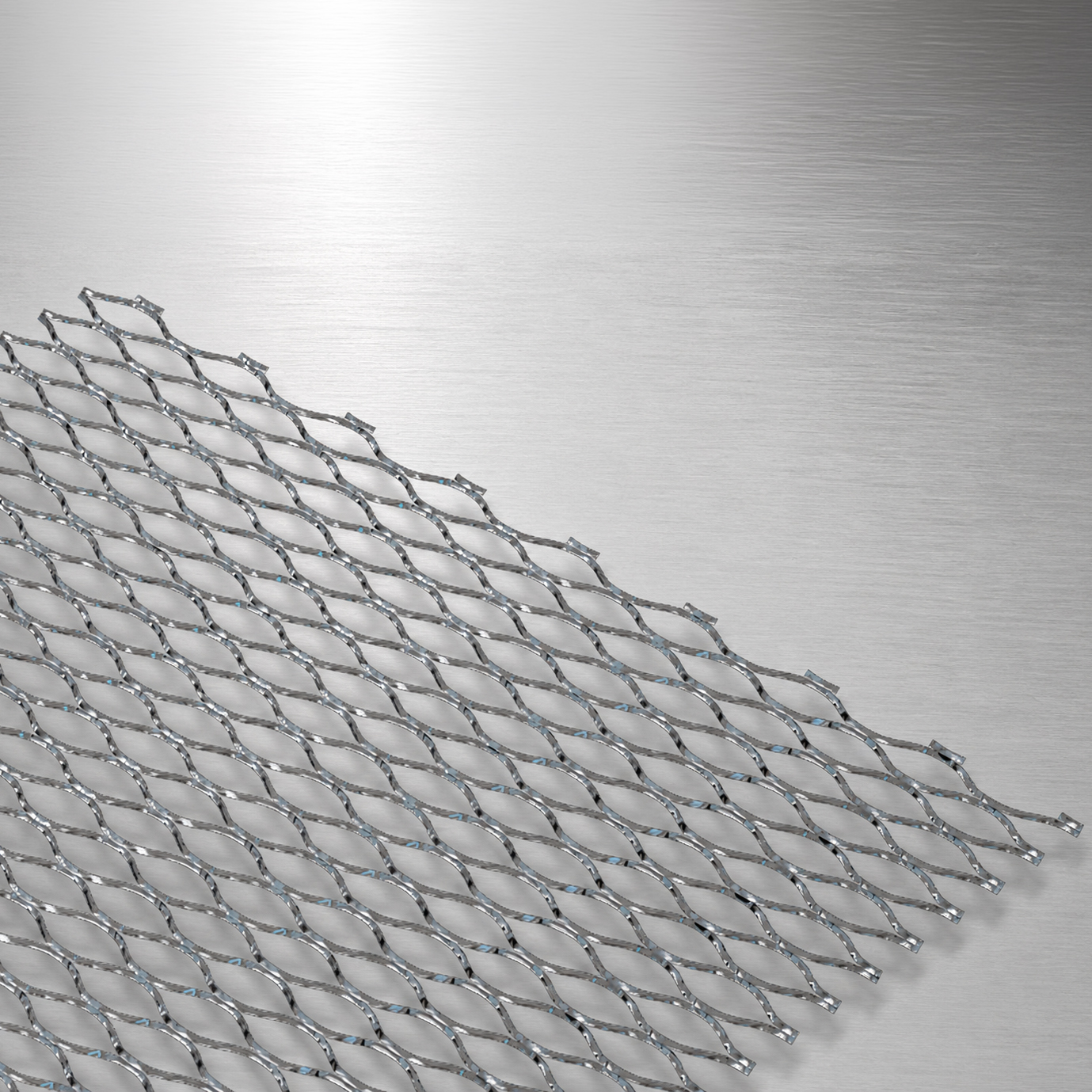

Teco EML Stainless Steel – 2500 x 700mm – Box of 10

The Teco EML Stainless Steel Sheet – 2500 × 700mm (Box of 10) creates a strong mechanical key for plaster on walls and suspended ceilings. As a result, plaster bonds more effectively and finishes remain durable over time.

Expanded metal lathing also supports the encasement of steel columns and beams. Therefore, it plays an important role in fire protection and plaster build-up systems. Because this sheet uses stainless steel, it performs reliably in external environments and areas exposed to moisture, condensation, or extended drying times.

Each sheet measures 2500 × 700mm and comes supplied in a box of 10, which makes it suitable for larger plastering and construction projects.

Key Features

• Provides a strong key for plaster finishes
• Suitable for walls and suspended ceilings
• Ideal for encasing steel beams and columns
• Assists with fire protection systems
• Stainless steel for external and damp environments
• High corrosion resistance
• Sheet size: 2500 × 700mm
• Supplied in a box of 10

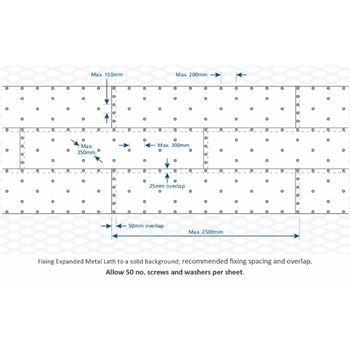

Installation Notes

• Fix sheets with the long edge spanning between supports
• Ensure mesh strands slope downwards and inwards from the plaster face
• Overlap sheets by 50mm lengthways and 25mm widthways
• Fix to timber using plasterer’s nails or screws with washers at 100mm centres
• Fix to metal supports using 1.2mm tying wire at 100mm centres
• Wear gloves during handling as edges may be sharp

Please Note
For dry internal applications where moisture exposure is limited, galvanised EML sheets may be suitable. Stainless steel is recommended for exposed or damp environments.
