Timco Zinc Chemical Anchor Threaded Studs, Nuts & Washers – M12 x 160mm – Box of 10
£5.24 ex VAT(£6.29 inc VAT)
Timco Zinc Chemical Anchor Threaded Studs, Nuts & Washers - M20 x 260mm - Box of 4
£8.16 ex VAT(£9.79 inc VAT)
-6%

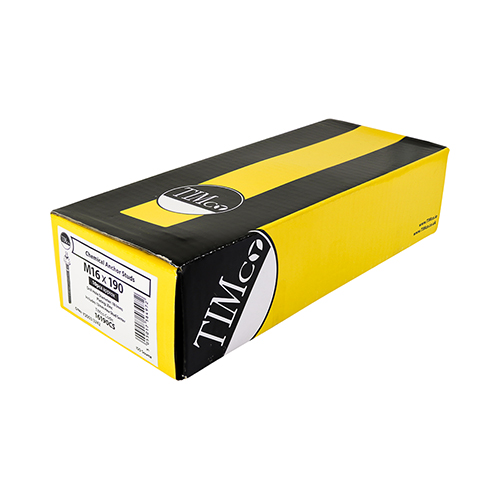

Timco Zinc Chemical Anchor Threaded Studs, Nuts & Washers – M16 x 190mm – Box of 10
Pack Quantity:
10
M16 x 190mm zinc concrete anchor stud supplied with nuts, washers and nut setter. Designed for use with resin fixing systems in concrete and masonry.
£9.00 ex VAT(£10.80 inc VAT)
VIP Members Club
Up to 10% off every order
Fast Delivery
Next day delivery options
8,000 + Products
All in one place
Free Delivery
When you spend over £85
Related Products
Timco Blow-Out Pump – 280 x 64mm
£6.58 ex VAT(£7.89 inc VAT)
Timco Impact Socket – 24 x 78mm
£6.66 ex VAT(£7.99 inc VAT)
Timco PE Chemical Resin – 300ml – Box of 12
£62.49 ex VAT(£74.99 inc VAT)
Timco SDS Plus Hammer Bit – 18.0mm x 450mm
£6.83 ex VAT(£8.19 inc VAT)
Timco VESF Vinylester SF Chemical Resin – 410ml
£11.74 ex VAT(£14.09 inc VAT)
Description
This M16 x 190mm concrete anchor stud is designed for use with chemical resin systems when fixing into concrete and masonry. When installed with resin, it forms a strong bonded fixing suitable for heavy structural and load-bearing applications.
Supplied complete with matching nuts, washers and a nut setter, this Grade 5.8 carbon steel fixing provides a reliable solution for internal structural installations.
Also referred to as a chemical anchor stud or resin anchor bolt, the zinc plated finish makes it suitable for dry internal environments.
Features
- Chisel point to prevent rotation during tightening
- External hex drive
- Embedment depth mark
- Manufactured from Grade 5.8 carbon steel
- Zinc plated for internal use
- Supplied with nuts, washers and nut setter
This M16 x 190mm concrete anchor stud is commonly used for base plates, structural steel connections and heavy-duty concrete fixing applications.
Supplied in a box of 10.
Features
| Weight | 2.863 kg |
|---|---|
| Brand |
Timco |
| Corrosion Rating (1-5) |
1 – Clean, dry & low humidity environments |
| Drill Hole Dia. mm |
18 |
| Finish |
Zinc |
| Fixture Hole Size Ø (mm) |
18 |
| Hole Depth mm |
125 |
| Included Items |
12mm Nut Setter (Qty 1) |
| Length mm |
190 |
| Material |
Carbon Steel |
| Max Fixture Thickness mm |
35 |
| Nut Size (mm) |
M16 |
| Nut Type |
Hex Full |
| Pack Qty |
10 |
| Pack Type |
Box |
| Point Type |
Chisel |
| Size |
M16 x 190mm |
| Thread Dia. mm |
M16 |
| Thread Type |
Metric |
| Washer Type |
Form A |
| Washer Size mm |
M16 |
